UVA LED and lamp solutions for insect trap equipment, restaurants, kitchens, food factories, hospitals, and industrial facilities.
Recommended Product

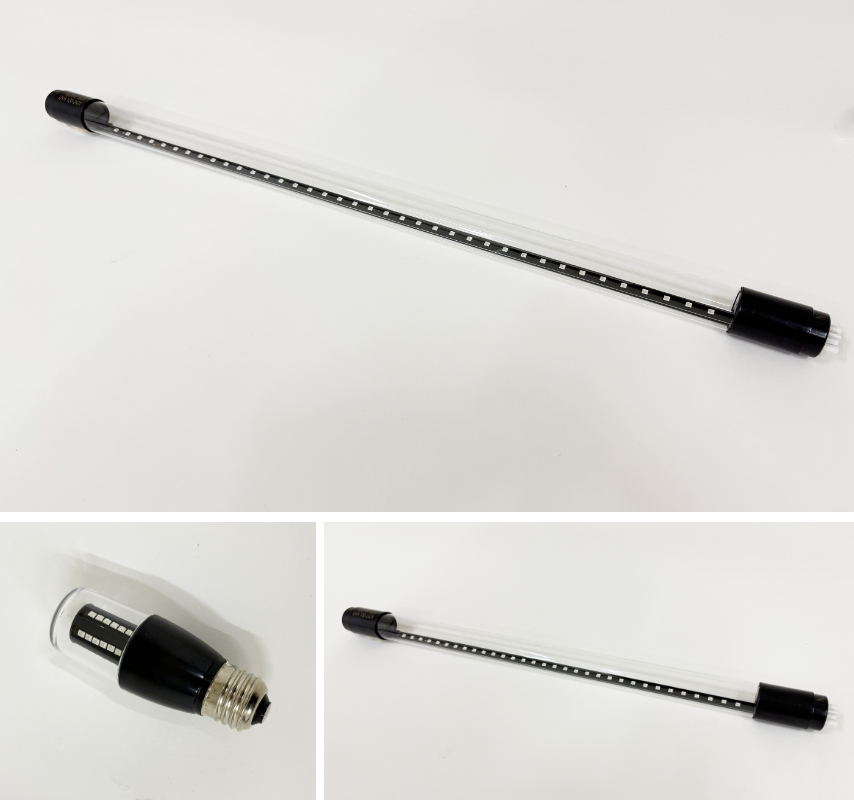

UVA LED Lamp — Long life, low heat, and stable quality for insect trap equipment. Small-quantity orders available.
| Product | Main Application | Strength | Availability |
|---|---|---|---|
| UVA LED Lamp | Insect trap equipment | Long life, low heat | Stock / short lead time if available |
| UVA Fluorescent Lamp | Insect trap equipment | Low cost, stable quality | Stock sales |
| UVC Germicidal Lamp | Air purification equipment | 4W to 30W lineup | Please confirm availability |
Fluorescent lamps for insect traps are special fluorescent lamps designed to efficiently emit 365nm ultraviolet rays (UV-A), which many insects prefer, to attract and capture insects.
UV LEDs are LED light sources that selectively emit UV (ultraviolet) rays. They are used in a variety of fields, including curing UV-curable resins, preventing pests and diseases in agricultural crops, and sterilizing.
| LED Prouct Name |
Power (W) |
Voltage (V) |
Current (A) |
UV Output (W) |
Wavelength (nm) |
Bulb Diameter (mm) |
Length (mm) |
Lamp base | Dimmable (Yes/No) |
Life Time (h) |
|---|---|---|---|---|---|---|---|---|---|---|
| TL1.5W | 1.5 | 100-240 | 0.02 | 0.5 | 265 | 16 | 135.9 | G5 | No | 25,000 |
| TL2W | 2 | 100-240 | 0.03 | 0.9 | 265 | 16 | 212.1 | G5 | No | 25,000 |
| TL3W | 3 | 100-240 | 0.05 | 1.2 | 265 | 16 | 288.3 | G5 | No | 25,000 |
| TLD4W | 4 | 100-240 | 0.04 | 1.5 | 265 | 28 | 331.5 | G13 | No | 25,000 |
| TLD7W | 7 | 100-240 | 0.07 | 2.1 | 265 | 28 | 437.4 | G13 | No | 25,000 |
| TLD9W | 9 | 100-240 | 0.09 | 3.7 | 265 | 28 | 589.8 | G13 | No | 25,000 |
| TLD14W | 14 | 100-240 | 0.15 | 6.0 | 265 | 28 | 894.6 | G13 | No | 25,000 |
| TLD18W | 18 | 100-240 | 0.18 | 9.0 | 265 | 28 | 1199.4 | G13 | No | 25,000 |
| LT38-4 | 4 | 100-240 | 0.04 | 1.5 | 265 | 38 | 109 | E26/27 | No | 25,000 |
| LT38-7 | 7 | 100-240 | 0.07 | 3.1 | 265 | 38 | 109 | E26/27 | No | 25,000 |

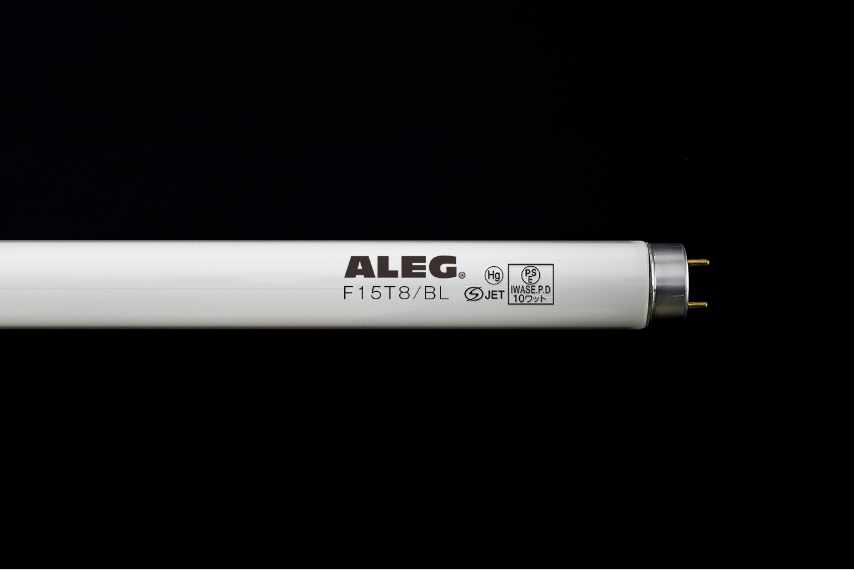

Fluorescent lamps for insect traps are special fluorescent lamps designed to efficiently emit 365nm ultraviolet rays (UV-A), which many insects prefer, to attract and capture insects.
| Product Name | Power (W) |
Voltage (V) |
Lamp base | Current (A) |
Bulb Diameter (mm) |
Wavelenghth Peak (nm) |
Dimmable (Yes/No) |
Life Time (h) |
|---|---|---|---|---|---|---|---|---|
| F15T8/BL | 15 | 55V | G13 | 0.33A | 26 | 368 | No | 10,000 |
| F18T8/BL | 18 | 55V | G13 | 0.33A | 26 | 368 | No | 10,000 |

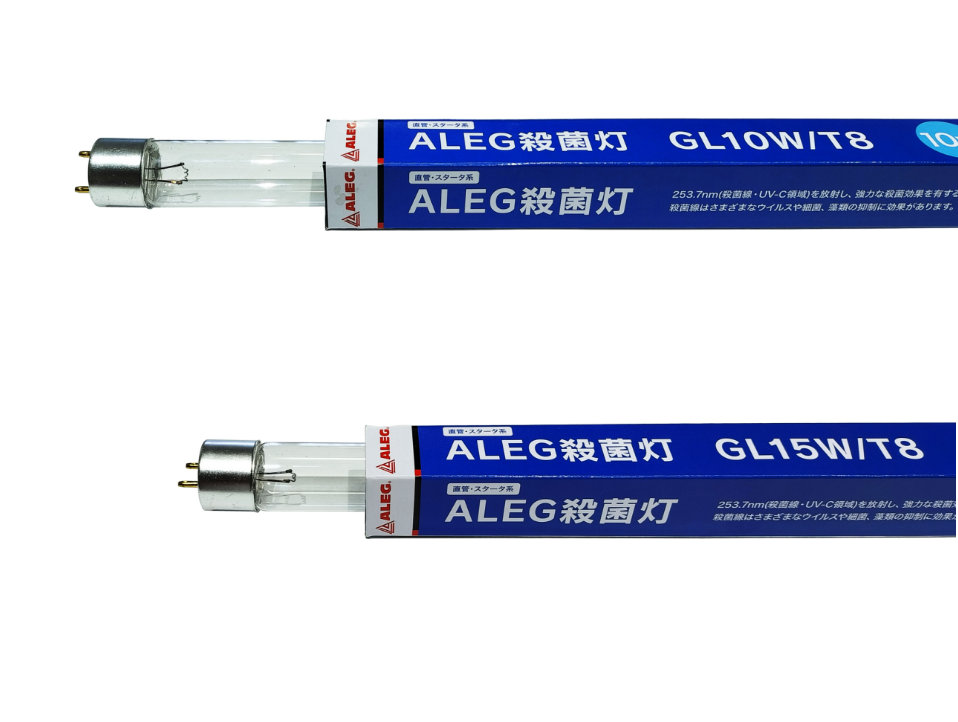

UVC lamps are used as light sources for equipment designed for germicidal applications. They emit 253.7nm UV rays used in air purification and related equipment. Please follow the safety instructions and equipment design requirements for your specific application.
| Product Name | Power (W) |
Current (A) |
UV Output (W) |
Wavelength (nm) |
Bulb Diameter (mm) |
Length (mm) |
Lamp base | Mercury content (mg) |
Life Time (h) |
|---|---|---|---|---|---|---|---|---|---|
| GL10W/T8 | 10 | 0.23 | 2.7 | 253.7 | 25.5 | 330 | G13 | 3.5 or below | 8,000 |
| GL15W/T8 | 15 | 0.305 | 5.0 | 253.7 | 25.5 | 436 | G13 | 3.5 or below | 8,000 |
We can discuss custom specifications depending on your requirements. Please note that small-lot custom orders may not be available.
| Custom parameters | Size, lamp base, quantity, replacement product consultation |
|---|---|
| OEM support | Available depending on quantity |
| Estimated lead time | Approx. 3 months |
| First transaction | Cash payment in advance required |
Request a quote for UVA / UVC products.
Please send us your company name, country, end-user country, expected quantity, application, required specifications, and whether this is a replacement or new development project.
