Fluorescent LED Replacement Lamps

Fluorescent LED replacement lamps for shops, hospitals, factories

Energy-saving LED lamps for replacing fluorescent lamps in shops, hospitals, factories, schools, and commercial facilities.

Request a Quote Request a Catalog

Supported Fluorescent Lamp Types

Our LED replacement lamps are compatible with the following fluorescent lamp series:

FHP FHT FPL FDL FL FLR

No wiring work required for most models. Please check the lamp base before ordering.

Key Features

Low Power Consumption

Significant energy saving compared to conventional fluorescent lamps.

High Color Rendering Ra≧90

Suitable for retail, medical, and color-critical environments.

Small Quantity Orders Available

Flexible ordering from small lots to bulk quantities.

Quick Quotation Response

Fast quote turnaround. Please send us your lamp model and quantity.

Applications

Shops & Retail Hospitals Factories Schools Condominiums General Lighting

Products information

Product Name Power (W) Voltage (V)  Lamp Base Color Rendering
(Ra)
Color
Temperature (K)
Total luminous
flux(lm)
Life Time(h)
LDFHP23/11W/AC/EXN 11 100 GY10q >90 5,000 1,400 30,000
LDFHP32/18W/AC/EXN 18 100 GY10q >90 5,000 2,300 30,000
LDFHT32/10.5W/AC/EXL 10.5 100-240 GX24q >90 3,000 1,480 30,000
LDFHT32/10.5W/AC/EXN 10.5 100-240 GX24q >90 5,000 1,580 30,000
LDFHT42/13.5W/AC/EXL 13.5 100-240 GX24q >90 3,000 1,900 30,000
LDFHT42/13.5W/AC/EXN 13.5 100-240 GX24q >90 5,000 2,000 30,000

※A wide range of products is available. Please contact us if you require a type other than those listed above.

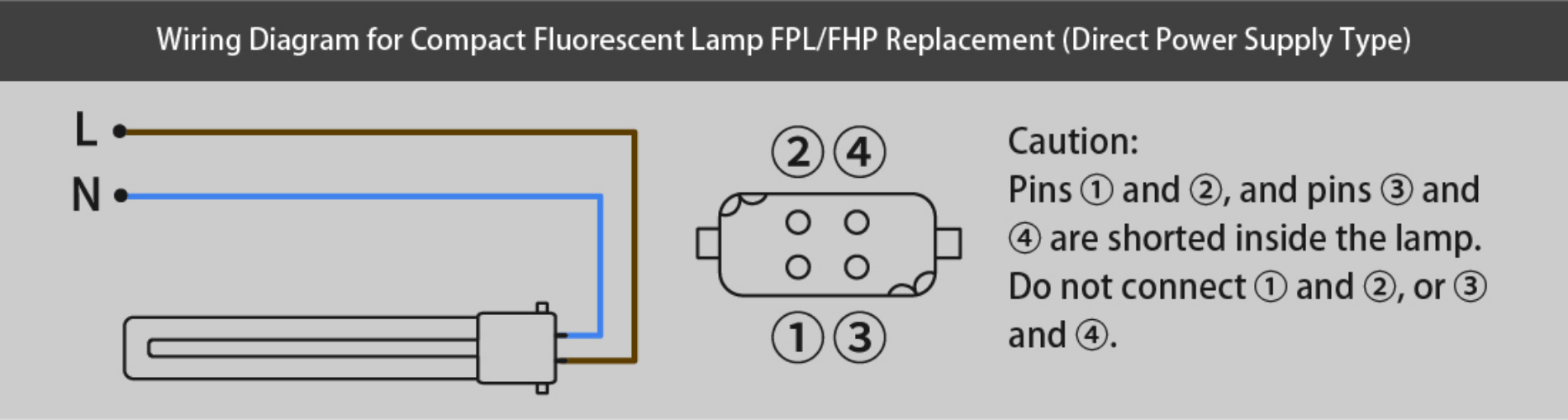

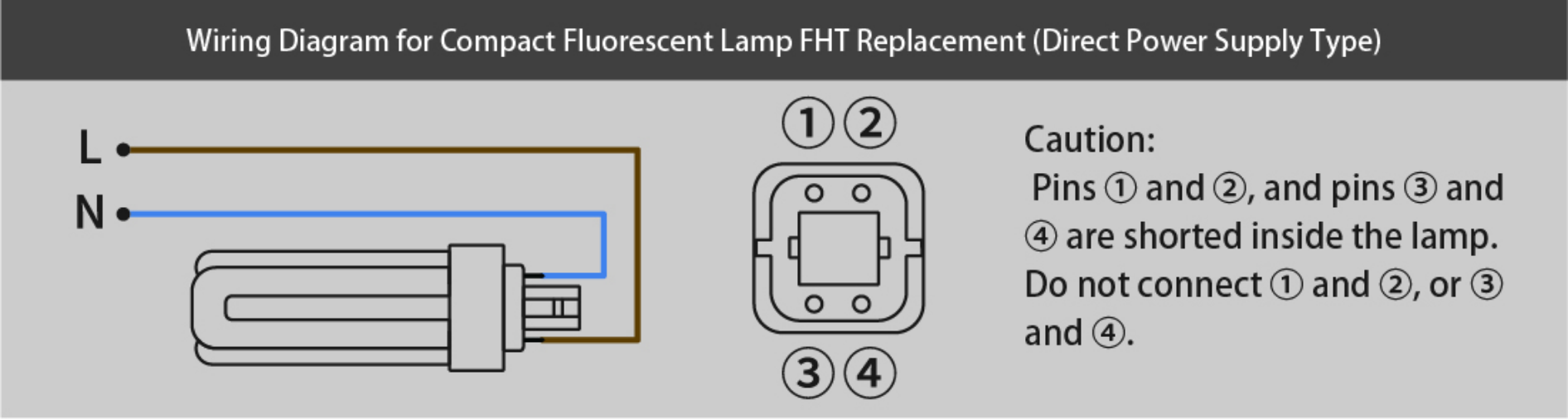

Wiring Diagram

Fluorescent LED lamp wiring diagram
Fluorescent-type LED lamp product image

Series Lineup

A-60 Type

Standard globe shape. E26 base. Direct replacement for A-60 incandescent bulbs.

Spiral Filament Type

Decorative filament-style LED. Suitable for visible-bulb fixtures.

LED Compact Type

Compact fluorescent lamp (FHP / FHT) replacement. GY10q / GX24q base.

Straight Tube Type

FL / FLR tube replacement. G13 base. Direct or ballast-bypass installation.

A wide range of products is available beyond the models listed. Please contact us for other types.

Compatibility and Installation

Supported lamp bases E14 / E26 / GY10q / GX24q / G13
Replacement targets FHP / FHT / FPL / FDL / FL / FLR
Wiring work Not required for most models

FAQ

Which fluorescent lamps can be replaced?

Our LED lamps are compatible with FHP, FHT, FPL, FDL, FL, and FLR type fluorescent lamps. Please send us your existing lamp model number to confirm compatibility.

Is wiring work required?

No wiring work is required for most models. However, please check the lamp base type before ordering.

Which lamp bases are supported?

E14, E26, GY10q, GX24q, and G13 lamp bases are supported.

Is dimming available?

Some models support dimming. Please refer to the product specifications or contact us for details.

What is the lamp lifetime?

The rated lifetime is 30,000 hours for most models, significantly longer than conventional fluorescent lamps.

Looking for a compatible LED replacement lamp?

Please send us your existing lamp model, quantity, fixture information, required delivery date, and payment terms.

Request a Quote Request a Catalog
